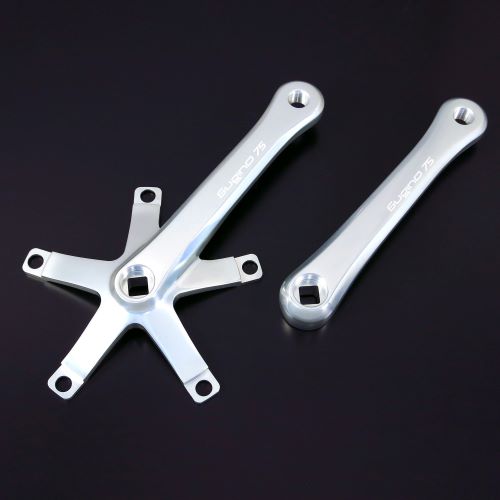

#401 SUS75 chainring fixing bolt/nut set is included.
P.C.D. : 144mm
Axle : "SG75 taper"
Crank Length : 165, 167.5, 170, 172.5, 175
Chainline : 42mm (BB-SG75 Series)
Color : Silver / Black
As SG75 Series use a proprietary taper called "SG75 taper", SG75 crank should only be used on SG75 bottom bracket.
For more detailed information, please check ;
"Important Information on SG75 Taper"
SG75 144 SILVER
SG75 144 BLACK
