OX Series∅24mm Through Axle B.B. Compatible

All-round chainwheel set, offers high performance in various fields. Unique system "Compact Plus+"
enables the use of super small inner rings.

OX2-901D Compact Plus+
OX2-901D Classic Compact Plus+(Chainwheel Set)

RoadHill ClimbCyclocrossTouringGranfondoTriathlon
11SPEED CompatibleIDS24mm AxleCrank Length 160-175mm
Picture : OX2-901D Compact+ (Crank Set) Zoom : OX2-901D Compact+ (Silver) Zoom : OX2-901D Compact+ (Black) Zoom : OX2-901D Classic Compact+ (Silver) Zoom : OX2-901D Classic Compact+ (Black)
BUY NOW - Mail Order
User's Manual

» Download (PDF File)

Specification
P.C.D. : 110mm-110mm / 74mm

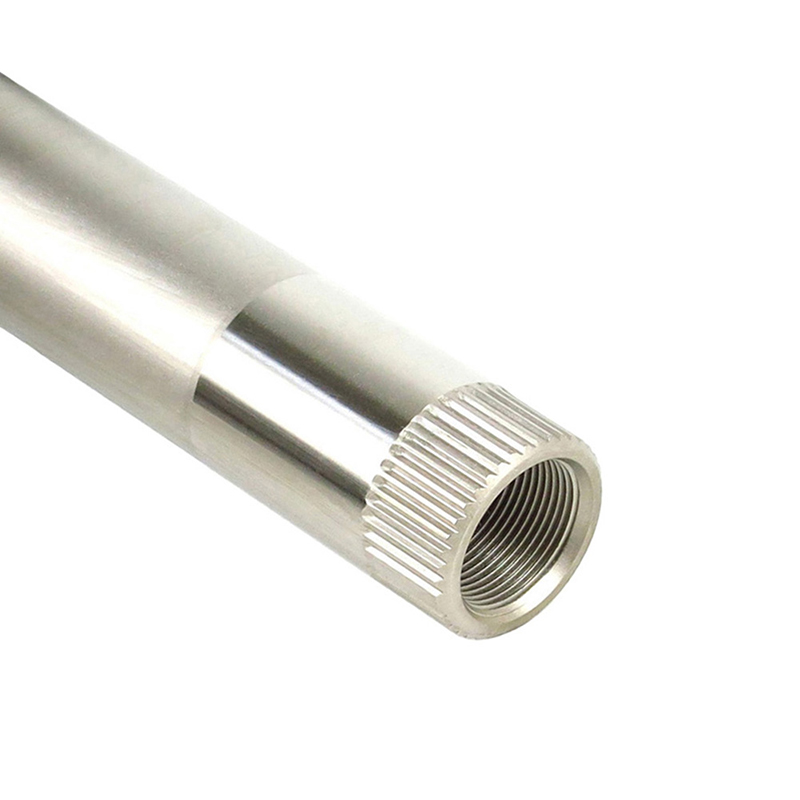

Axle Type : IDS24
Compatibility : SHIMANO 11Speed / 10Speed
Chain Line : 43.5mm
Q-Factor : 145mm
Crank Material : Hard forged aluminum alloy
Crank Length : 160 / 165 / 167.5 / 170 / 172.5 / 175mm
Color : Silver / Black
Combinations : 52-36T
  50-36T / 50-34T
  48-36T / 48-34T / 48-32T
  46-36T / 46-34T / 46-32T / 46-30T
  44-32T / 44-30T
B.B.
Converter - POWER SLEEVE Converter BB90
Small Parts
Adjustable FD MOUNT for OX (MT-OX) #801 for OX Compact #803 for OX Compact Plus 2 piece Crank Adjust Spacer set Adjustable Bolt (M18) TL-AJB 01
Press Release

» Download (PDF File)

OX2-901D AIR(Chainwheel Set)

RoadHill ClimbCyclocrossTriathlon
11SPEED CompatibleIDS24mm AxleCrank Length 160-175mm
Picture : OX2-901D Air (Crank Set) Zoom : OX2-901D Air (Black)
BUY NOW - Mail Order
User's Manual

» Download (PDF File)

Specification
P.C.D. : 110mm
Axle Type : IDS24
Compatibility : SHIMANO 11Speed / 10Speed
Chain Line : 43.5mm
Q-Factor : 145mm
Crank Material : Hard forged aluminum alloy
Crank Length : 160 / 165 / 167.5 / 170 / 172.5 / 175mm
Color : Black
Combinations : 52-36T
  50-36T / 50-34T
B.B.
Converter - POWER SLEEVE Converter BB90
Small Parts
#801 for OX Compact 2 piece Crank Adjust Spacer set Adjustable Bolt (M18) TL-AJB 01
Press Release

» Download (PDF File)

OX901D Classic Compact Plus+(Crank Set)

*To be discontinued
when stocks sell out
RoadHill ClimbCyclocrossTouringGranfondoTriathlon
11SPEED CompatibleIDS24mm AxleCrank Length 160-175mm
Picture : OX901D Classic Compact+ (Crank Set) Zoom : OX901D Classic Compact+ (Silver) Zoom : OX901D Classic Compact+ (Black)
BUY NOW - Mail Order
User's Manual

» Download (PDF File)
Minor change before(Bolt M5) » Download (PDF File)
Minor changes After(Bolt M6)

Specification
P.C.D. : 110mm / 74mm
B.B. : MB-608(BSA) STEEL
Compatibility : SHIMANO 11Speed / 10Speed
Crank Length : 160 / 165 / 167.5 / 170 /172.5 / 175mm
Crank : Hard forged aluminum alloy
Chain Line : 43.5mm
Chainring : Outer - EV110S / CP110S
  Inner - EV110S / CP74S
Color : Black / Silver
Q Factor : 145mm
Combinations : 52-36T
  50-36T / 50-34T
  48-36T / 48-34T / 48-32T
  46-36T / 46-34T / 46-32T / 46-30T
  44-32T / 44-30T
Small Parts
Adjustable FD MOUNT for OX (MT-OX) #801 for OX Compact #803 for OX Compact Plus M15 PRESSURE BOLT 2 piece Crank Adjust Spacer set

To the OX901D 11 speed, the almighty crank used in various scenes, such as road races, triathlon, hill climbing, the “classic design” version is newly added.

OX901D Compact Plus+(Crank Set)

*To be discontinued
when stocks sell out
RoadHill ClimbCyclocrossTouringGranfondoTriathlon
11SPEED CompatibleIDS24mm AxleCrank Length 160-175mm
Picture : OX901D Compact+ (Crank Set) Zoom : OX901D Compact+ (Silver) Zoom : OX901D Compact+ (Crank Set)
BUY NOW - Mail Order
User's Manual

» Download (PDF File)
Minor change before(Bolt M5) » Download (PDF File)
Minor change after(Bolt M6)

Specification
P.C.D. : 110mm / 74mm
B.B. : MB-608(BSA) STEEL
Compatibility : SHIMANO 11Speed / 10Speed
Crank Length : 160 / 165 / 167.5 / 170 /172.5 / 175mm
Crank : Hard forged aluminum alloy
Chain Line : 43.5mm
Chainring : Outer - CP110S
  Inner - CP74S
Color : Black / Silver
Q Factor : 145mm
Combinations : 52-36T
  50-36T / 50-34T
  48-36T / 48-34T / 48-32T
  46-36T / 46-34T / 46-32T / 46-30T
  44-32T / 44-30T
Small Parts
Adjustable FD MOUNT for OX (MT-OX) #801 for OX Compact #803 for OX Compact Plus M15 PRESSURE BOLT 2 piece Crank Adjust Spacer set

The advanced "OX901D" is lighter in weight.
The minimum Q-factor is 145mm, which is the same as the racing spec.
The ankle clearance prevents the shoe from contacting the crank.
11 speed chain compatible.
"Compact＋" capable of withstanding high-load is redesigned to increase shifting performance.

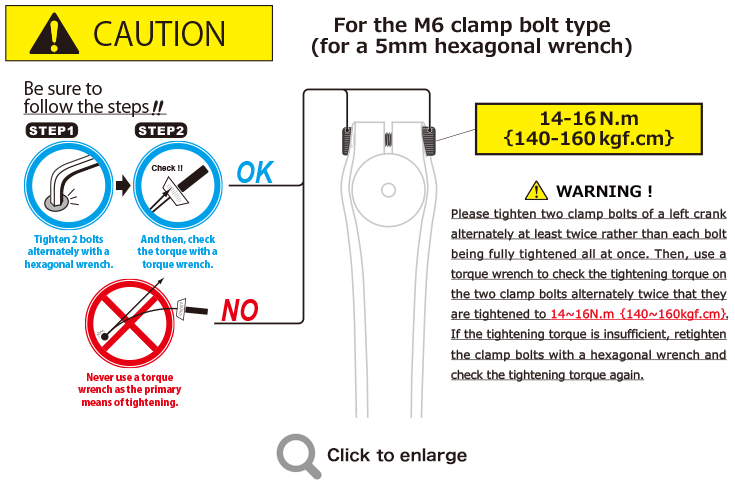

CAUTION : M6 clamp bolt type (for a 5mm hexagonal wrench)
